接收器 |
|
| 电阻率, IP 和 SP测量 | |
| 通道数 | 8 (galvanically insulated or coupled) |
| 输入阻抗 | 40 MΩ |
| 输入电压值 | ±10 V (24 bit conversion) |
| IP窗口数 | up to 10 |
| 堆积 | 1 - 64 |
| SP 补偿 | constant and linear |
| 主要频率滤波 | 50 Hz |
| 精度 | 0.1 % |
| 尺寸 | 700 x 400 x 320 mm |
| 重量 | 35 kg |
| 工作环境 | -10 to +50 °C weather proof |
|
支持方法: |
|
| VES (vertical electric sounding) | |
| 8 channel profiling (pole dipole and other arrays) | |
| SP - Self Potential | |
| User defined arrays | |
| IP - Induced Polarization (Chargeability) | up to 10 adjustable IP-windows, each max. 6 s, step 20 ms |
| Measured optimization | adjustable optimum measured potential |
| Stored values | position of measured point, ouput current, output voltage, input voltage, SP, apparent resistivity, standard deviation, chargeability with standard deviation for all 10 IP windows |

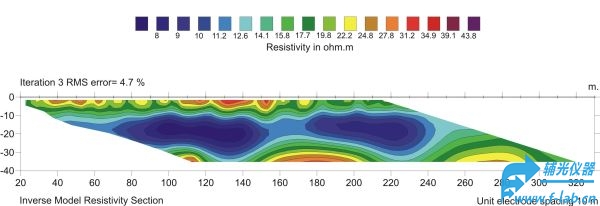

| Ouput data format | IPI2WIN, RES2DINV, Surfer or simple ASCII file which is available to be opened in other software |
|
发射器规格参数: |
|
| Power supply | external engine power generator HONDA 2 x 2000 W |
| Output power | up to 3500 W |
| Current | up to 10 A (24 bit conversion) |
| Current waveform | square with selectable pulse length and frequency |
| Pulse | 1 s - 60 s, step 1 s |
| Voltage | up to 2500 V |
| Precision | 0.1 % |
