| Metrological specifications | |
|---|---|
| Measured parameter | deformation, micro-strain |
| Sensor type | integrated sensing element |
| Measured range | 0…1600 µm/m |

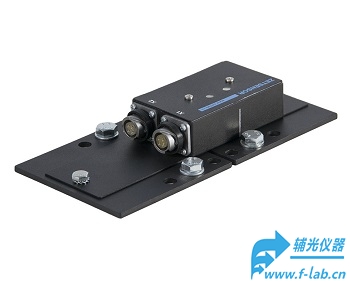

| Measurement range without the use of mounting panel | 0…300 µm/m |
| Measurement range with the use of mounting panels (in different mounting points) |
0…600 µm/m 0…1100 µm/m 0…1600 µm/m |
|
Sensitivity threshold depending on the range, µm/m: from 0 to 300 from 0 to 600; from 0 to 1100; from 0 to 1600. |
2 µm/m 4 µm/m 8 µm/m 12 µm/m |
| Temperature impact on sensitivity, 10 °C (from the measuring range) | 2 % |
| 24 hours zero drift | 0,5 % |
| Restoring force | 1500 N |
| Failure strain (without the use of mounting panels) | 500 µm/m |
| Operability control in real time mode |
sensor temperature synchronization quality data quality |
| Measurement reliability check |
sensing element integrity check measuring circuit range |
| Technical specifications | |
| Data interface | CAN 2.0 |
| Exchange speed | 100, 300, 1000 kbps |
| Data output frequency | 1 Hz |
| Operational specifications | |
| Dimensions | 197×56×30 mm |
| Weight | 300 g |
| Device power | from 9 to 24 V |
| Consumed power | 0,5 W |
| Polarity reversal protection | yes |
| Operational temperature range | from -40 to +100 °C |
| Available product versions |
Standard (protection class IP65) Explosion-proof* (explosion protection class 0ExiaIICT6 X (IP67)) |
| Electromagnetic compatibility EMC | |
| IEC 61000-4-2, ESD | contact 8 kV, air 15 kV |
| IEC 61000-4-4, EFT | power 4 kV, signal 2 kV |
| IEC 61000-4-5, Surge | 4000 V |
* The price is calculated on individual basis
